EA560

Request product

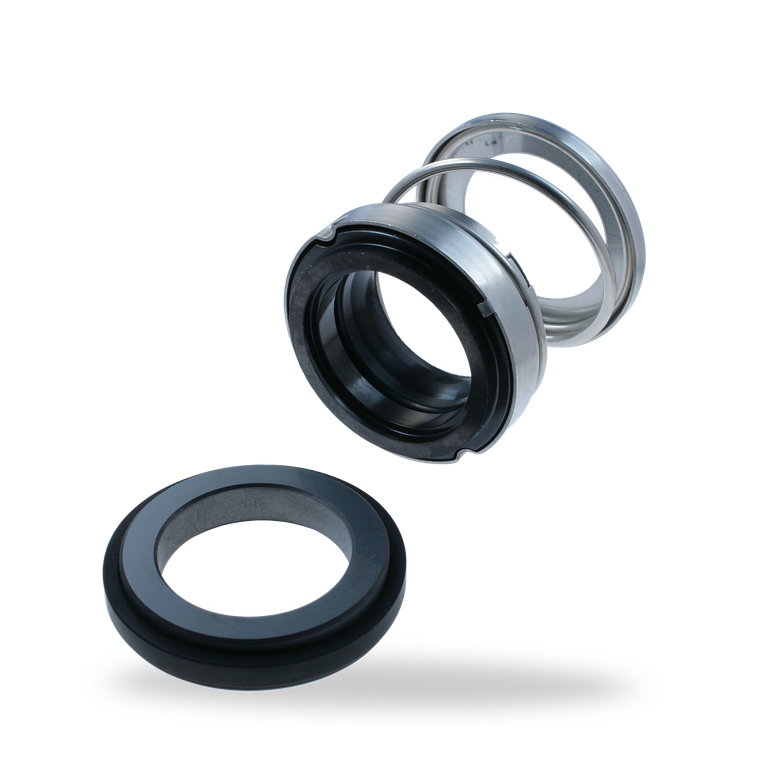

EA560

EA560
Request product
Item Description

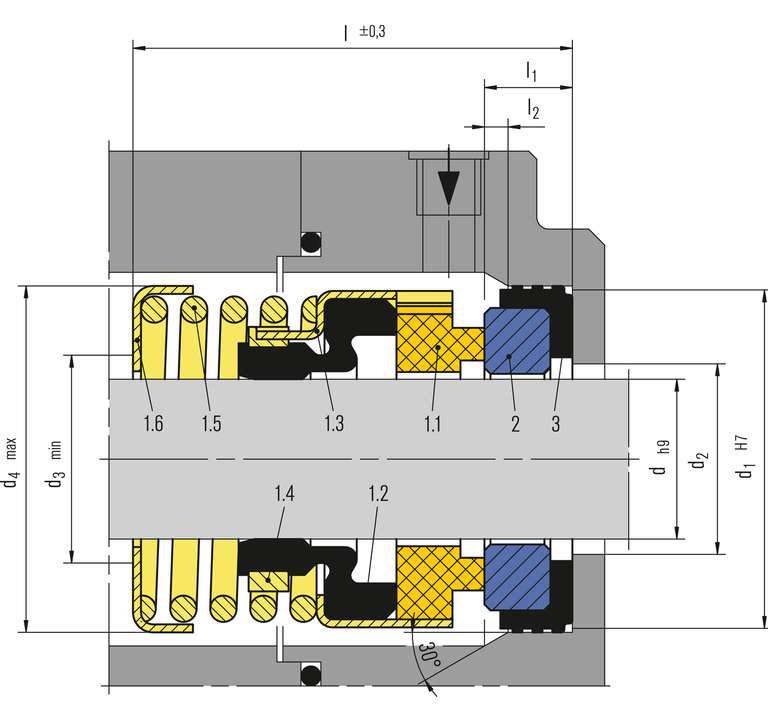

1.1 Seal face
1.2 Bellows
1.3 Spring collar
1.4 Drive collar
1.5 Spring
1.6 Spring holder
2 Seat
3 Corner sleeve

EA560

Features

  • Single seal
  • Loosely inserted seal face provides self-adjusting capability
  • In-house manufactured sliding parts

Advantages

The EA560 is self-adjusting to shaft misalignments and deflections because of the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. The length of the contact area of the bellows with the shaft is an optimum compromise between ease of assembly (less friction) and sufficient adhesive force for torque transmission. Additionally the seal fulfills very specific leakage requirements. Because the sliding parts are made in-house, a wide variety of special needs can be accommodated.

Operating range

Shaft diameter:
d1 = 8 … 50 mm (0.375" … 2")
Pressure:
p1 = 7 bar (102 PSI),
vacuum … 0.1 bar (1.45 PSI)
Temperature:
t = -20 °C … +100 °C (-4 °F … +212 °F)
Sliding velocity: vg = 5 m/s (16 ft/s)
Axial movement: ±1.0 mm

Materials

Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
Seat:
Aluminium oxide (V), Silicon carbide (Q1, Q2)
Elastomer: NBR (P), FKM (V)
Metal parts: CrNi steel (F)

Similar products

AX05

AX05

  • Unbalanced
  • Independent on direction of rotation

Read more

BT-A2

BT-A2

  • Rubber bellows mechanical seal
  • Unbalanced
  • Single spring
  • Independent of direction of rotation
  • Stationary design

Read more

BT-AR

BT-AR

  • Rubber bellows mechanical seal
  • Unbalanced
  • Single spring
  • Independent of direction of rotation
  • Short axial installation length

Read more

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview
