DX3S DanOne
metal expansion joints
Installation, details, options

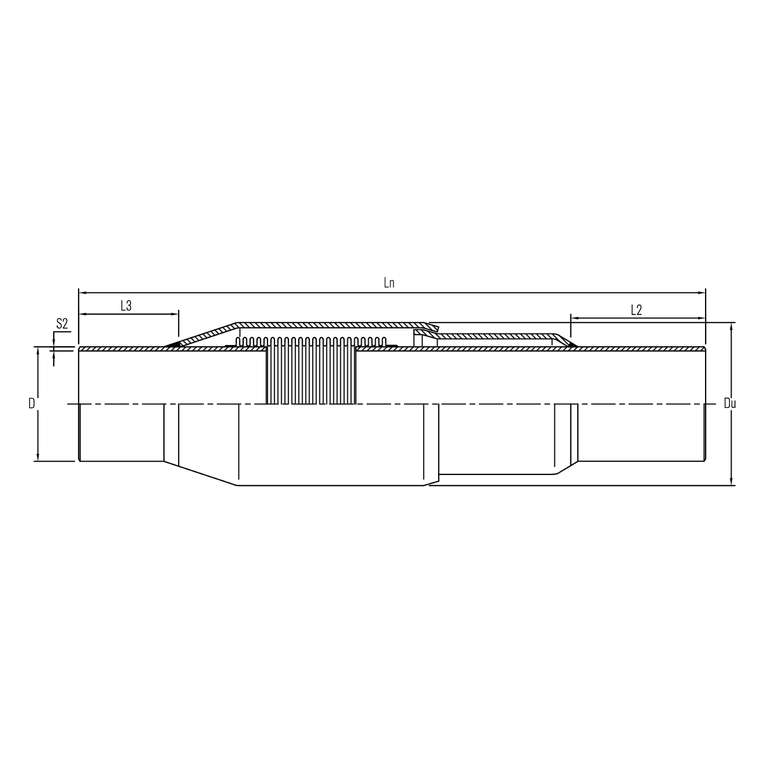

PN 16 Technical data
| Item no. | Axial movement |
LN (mm) |
D (mm) |
S2 (mm) |
L2 (mm) |
L3 (mm) |
Du (mm) |
Sam. pres raft N |
Effective area AB |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| DX3S.40.16.50 | 50 | 450 | 48.3 | 2.6 | 100 | 80 | 76.1 | 1600 | 2910 | 3 |
| DX3S.50.16.50 | 50 | 450 | 60.3 | 2.9 | 100 | 80 | 88.9 | 1700 | 4180 | 4 |
| DX3S.65.16.70 | 70 | 500 | 76.1 | 2.9 | 105 | 80 | 108.0 | 3000 | 6160 | 5 |
| DX3S.80.16.70 | 70 | 500 | 88.9 | 3.2 | 105 | 80 | 121.0 | 2300 | 8110 | 7 |
| DX3S.100.16.80 | 80 | 550 | 114.3 | 3.2 | 100 | 80 | 159.0 | 2800 | 12690 | 11 |
| DX3S.125.16.80 | 80 | 550 | 139.7 | 3.6 | 100 | 80 | 177.8 | 3600 | 18030 | 14 |
| DX3S.150.16.100 | 100 | 630 | 168.3 | 3.6 | 90 | 80 | 205.0 | 4800 | 25510 | 22 |
| DX3S.175.16.100 | 100 | 630 | 193.7 | 4.0 | 90 | 80 | 235.0 | 5700 | 33200 | 27 |
| DX3S.200.16.120 | 120 | 700 | 219.1 | 4.5 | 105 | 80 | 267.0 | 6700 | 44460 | 36 |
| DX3S.250.16.120 | 120 | 700 | 237.0 | 5.0 | 100 | 80 | 323.9 | 8900 | 67020 | 46 |
| DX3S.300.16.140 | 140 | 730 | 323.9 | 5.6 | 110 | 80 | 373.0 | 10800 | 92410 | 62 |
| DX3S.350.16.140 | 140 | 730 | 355.6 | 5.6 | 110 | 80 | 406.4 | 12000 | 110450 | 70 |
| DX3S.400.16.140 | 140 | 730 | 406.4 | 6.3 | 110 | 80 | 457.2 | 14000 | 142400 | 88 |
| DX3S.450.16.150 | 150 | 800 | 457.2 | 6.3 | 110 | 80 | 519.0 | 16100 | 178410 | 121 |
| DX3S.500.16.150 | 150 | 800 | 508.0 | 6.3 | 110 | 80 | 568.0 | 18200 | 218460 | 131 |
| DX3S.600.16.150 | 150 | 800 | 609.6 | 8.0 | 110 | 80 | 671.0 | 21800 | 310740 | 174 |
| Item no. | Axial movement |
LN (mm) |
D (mm) |
S2 (mm) |
L2 (mm) |
L3 (mm) |
Du (mm) |
Spring rate axial C N/mm |
Effective area AB |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| DX3S.40.25.50 | 50 | 450 | 48.3 | 2.6 | 100 | 80 | 76.1 | 190 | 2846 | 3 |
| DX3S.50.25.50 | 50 | 450 | 60.3 | 2.9 | 100 | 80 | 88.9 | 199 | 4038 | 4 |
| DX3S.65.25.70 | 70 | 500 | 76.1 | 2.9 | 105 | 80 | 108.0 | 184 | 6305 | 5 |
| DX3S.80.25.70 | 70 | 500 | 88.9 | 3.2 | 105 | 80 | 121.0 | 185 | 8235 | 7 |
| DX3S.100.25.80 | 80 | 550 | 114.3 | 3.2 | 110 | 80 | 159.0 | 375 | 13253 | 11 |
| DX3S.125.25.80 | 80 | 550 | 139.7 | 3.6 | 115 | 80 | 177.8 | 233 | 17437 | 14 |
| DX3S.150.25.100 | 100 | 630 | 168.3 | 3.6 | 90 | 80 | 205.0 | 269 | 27172 | 22 |
| DX3S.200.25.120 | 120 | 700 | 219.1 | 4.5 | 105 | 80 | 267.0 | 762 | 44339 | 36 |
| DX3S.250.25.120 | 120 | 700 | 237.0 | 5.0 | 80 | 80 | 323.9 | 943 | 66052 | 46 |
| DX3S.300.25.140 | 140 | 730 | 323.9 | 5.6 | 85 | 80 | 373.0 | 1330 | 91649 | 62 |
| DX3S.350.25.140 | 140 | 730 | 355.6 | 5.6 | 85 | 80 | 406.4 | 1221 | 110859 | 70 |
| DX3S.400.25.140 | 140 | 730 | 406.4 | 6.3 | 85 | 80 | 457.2 | 1358 | 141600 | 92 |
| DX3S.450.25.150 | 150 | 800 | 457.2 | 6.3 | 95 | 80 | 519.0 | 1581 | 177510 | 125 |
| DX3S.500.25.150 | 150 | 800 | 508.0 | 6.3 | 115 | 80 | 568.0 | 1893 | 217060 | 135 |
