Fluastal
expansion joints

Fluastal <br/>
expansion joints

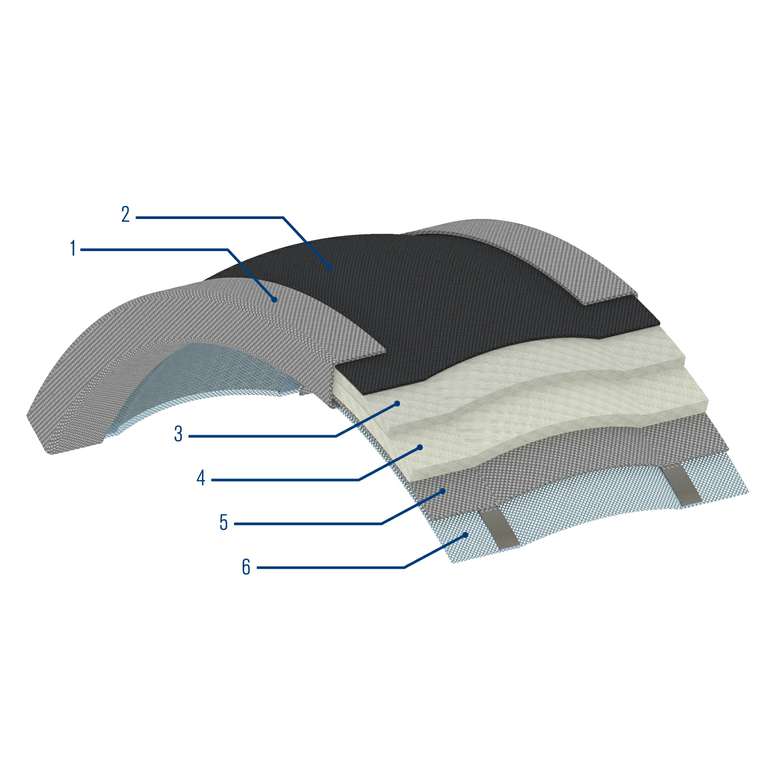

Item Description
1 Flange reinforcement
2 Pressure carrying layer / gas seal layer
3, 4 Insulation layer
5 Support layer
6 Mechanical reinforcement

Fluastal
expansion joints

Features

  • Multi layer design
  • Compensates for movements in several directions simultaneously
  • Excellent form stability
  • Can be delivered as fabric only or as preassembled unit
  • Custom made to fit actual working conditions

Advantages

  • Highly flexible
  • High chemical resistance
  • High flutter resistance
  • Reduced heat loss
  • Low reaction forces
  • Good resistance against abrasion
  • Suitable for high temperature applications

Operating range

Temperature*:
-35 °C … +575 °C (-31 °F ... +1,067 °F)
Pressure:
-0.2 bar … 0.2 bar (-2.9 PSI ... 2.9 PSI)
Maximal movements:
Axial … 160 mm (6.5”)
Lateral … 80 mm (3”)

* Temperatures above 750 °C (1,382 °F) requires internal duct insulation or refractory lining.

Standards and approvals

Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials

Functional description

Fluastal expansion joints safely absorb thermal expansion and misalignments in pipe and duct systems in dry and high temperature area. Flexgen products compensate for movements in multiple directions simultaneously.



Product variants

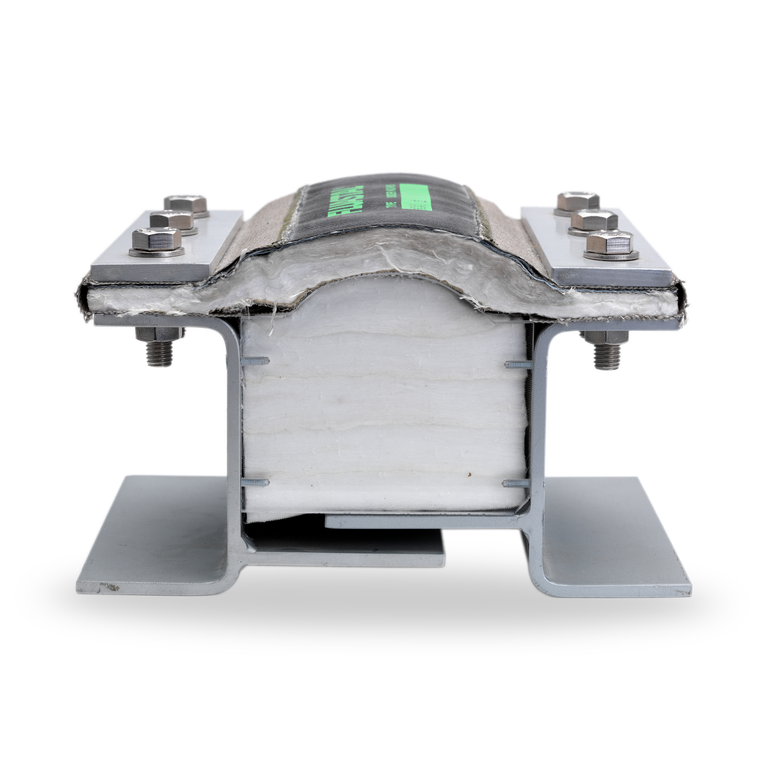

Pre-assembled units

Pre-assembled units

Pre-assembled expansion joint units consist of:

- Fabric expansion joint
- Metal frames/inner sleeves
- Gasket (optional)
- Fasteners

Frame material:
- Carbon steel
- Stainless steel
- Heat resistant steel

Pre-assembled expansion joint units can be supplied with surface treatment that is corrosion resistant (standard) and resistant to high temperatures. EagleBurgmann KE offers any RAL color code for the units. Units can be delivered with seaworthy packing or standard packing for road transportation.

Similar products

Acouseal expansion joint

  • Single layer design
  • Designed for acoustic demanding environment in GT inlets
  • Absorbs movements and vibrations in multiple directions
  • 100 % gas tight connection
  • Excellent and proven sound reducing properties

Combine-X expansion joints

  • Multi layer design
  • Compensates for movements in several directions simultaneously
  • Excellent form stability
  • Can be delivered as fabric only or as preassembled unit
  • Custom made to fit actual working conditions
  • Specifically designed for gas turbine systems

Flexgen expansion joints

  • Multi layer design (Flexgen 2002: single layer construction)
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled unit
  • For dry condition
  • Custom made to fit actual working conditions
Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
